Competitor Comparisons

Bondhus stands by it's tools. We've always believed we make the best tools on the market, now here's the proof.



Torque Comparison

Maximum torque of Bondhus tools and several of our competitors.

Learn More

Torque Comparison
Inch/pounds (Newton Meters)
Tool Size Bondhus® Protanium® Steel Eklind Allen Eight Wiha Hafu
Inch
.050 7.9 (0.9) 5.8 (0.7) 6.1 (0.7) - - -
1/16 15.9 (1.8 10.8 (1.2) 12.1 (1.4) - - -
5/64 34 (3.8) 23 (2.6) 23 (2.6) - - -
3/32 51 (5.8) 41 (4.6) 40 (4.5) - - -
7/64 84 (9.5) 65 (7.3) 64 (7.2) - - -
1/8 129 (14.5) 99 (11.2) 98 (11.1) - - -
9/64 185 (20.9) 141 (15.9) 144 (16.3) - - -
5/32 265 (29.9) 202 (22.8) 182 (20.6) - - -
3/16 431 (48.7) 334 (37.7) 312 (35.3) - - -
7/32 673 (76) 547 (61.8) 498 (56.3) - - -
1/4 950 (107.4) 819 (92.5) 759 (85.8) - - -
5/16 2022 (228.5) 1526 (172.4) 1479 (167.1) - - -
3/8 3005 (339.6) 2498 (282.3) 2345 (265) - - -
Metric
1.5mm 13.1 (1.5) 9.5 (1.1) 9.4 (1.1) 12.8 (1.4) 11.6 (1.3) 3.7 (1.1)
2mm 33 (3.7) 23 (2.6) 24 (2.7) 24 (2.7) 28.9 (3.2) 24.2 (2.7)
2.5mm 63 (7.1) 46 (5.2) 45 (5.1) 56 (6.67) 57 (6.4) 52 (5.9)
3mm 106 (12) 83 (9.4) 82 (9.3) 105 (11.7) 101 (11.4) 96 (10.8)
4mm 264 (29.8) 213 (24.1) 192 (21.7) 227 (25.6) 255 (28.8) 202 (22.8)
5mm 483 (54.6) 397 (44.9) 366 (41.4) 457 (51.6) 508 (57.3) 403 (45.5)
6mm 855 (96.6) 672 (75.9) 627 (70.9) 778 (87.9) 835 (94.3) 600 (67.8)
8mm 1861 (210.3) 1591 (179.8) 1481 (167.4) 1440 (162.7) 1790 (202.2) 1295 (146.3)
10mm 3563 (402.6) 3087 (348.8) 2951 (33.5) 3547 (400.7) 3440 (388.7) 3130 (353.6)

   In/pounds= nm/.112985

T-Handle comparisons

Compare the breaking point of Bondhus, Eklind, and Allen T-Handles.

Learn More

Project number 3018 99-07600
Date: March 3, 1999
MAXIM TECHNOLOGIES, INC.
662 Cromwell Avenue
St. Paul, Minnesota 55114

Project: Torque Testing
Client Purchase Order Number: Verbal
Prepared By: Scott W. Britzius Project Engineer/Experimental Mechanics Mechanical Engineering Department
Reviewed By: Richard S. Alberg Manager Mechanical Engineering Department
Phone: (651) 659-7307
"An Affirmative Action, Equal Opportunity Employer"

The test results contained in this report pertain only to the samples submitted for testing and not necessarily to all similar products.



Comparison Performance Torque Testing

INTRODUCTION:
This report presents the results of comparison performance tests conducted on T-Handle Hex wrenches produced by three manufacturers. The testing was requested on March 3, 1999 by Mr Mike Blackston of the Bondhus Corporation.

The scope of work was limited to purchasing the two competitor brand of wrenches directly from an industrial distributor. Determining the torque required to fracture (break) the three manufacturers wrenches and to provide a report of the results.

SUMMARY OF RESULTS:
Average Torque to Fracture (break) Off Wrench, in-lb

Wrench Size  Bondhus  Eklind  Allen
1/4 inch 869 781 756
7/32 inch 625 513 507
3/16 inch 387 336 319
5/32 inch 225 188 187
9/64 inch 158 135 131
1/8 inch 115 84  98
7/32 inch 77 59 63
3/32 inch 46 37 38



SAMPLE IDENTIFICATION:

T-Handle style Hex Wrenches. The Bondhus® wrenches were submitted on 3-4-99. Maxim Technologies purchased from MSC Industrial Supply Company, five (5) wrench sets of: ALLEN -Cushion Grip P/N 75043513 and EKLIND - Wire Form P/N 05044516 under our Purchase Order number 52205 dated 3-10-99. The wrenches were received at our facility via UPS on 3-12-99. The wrench sizes, shank length and T-handle dimensions are listed on the following page.

Wrench Dimensions, inches
Shank Length - Handle Width / Diameter

Wrench Size Bondhus Eklind Allen
1/4 inch 5.8 - 4.1/0.7
(P/N 13312)
6.0 - 4.1/0.9 5.4 - 5.0/0.65
7/32 inch  5.3 - 4.1/0.7
(P/N 13311)
6.0 - 4.0/0.8 5.4 - 4.2/0.65
3/16 inch 4.8 - 4.1/0.65
(P/N 13310)
6.0 - 4.0/0.7 5.4 - 4.2/0.65
5/32 inch 4.6 - 3.1/0.5
(P/N 13309)
6.0 - 3.1/0.65 5.6 - 3.1/0.45
9/64 inch 4.3 - 3.1/0.7
(P/N 13308)
6.0 - 3.1/0.6 5.6 - 3.1/0.45
1/8 inch  4.0 - 3.1/0.5
(P/N 13307)
6.0 - 3.1/0.6 5.6 - 3.1/0.45
7/32 inch 3.8 - 3.1/0.5
(P/N 13306)
6.0 - 3.0/0.5 5.6 - 2.4/0.45
3/32 inch 3.5 - 3.1/0.5
(P/N 13305)
6.0 - 3.0/0.5 5.6 - 2.4/0.40



TEST METHODS:

The size, shank length, handle width and diameter of the wrenches were documented. The torque testing was conducted by placing the shank of the wrench into the matching size of a hex driver socket attached to a 2,000 in-lb torque transducer. The handle of the wrenches were rotated in the clockwise direction using a fixture (see drawing on page 6) designed to contact the handle with two (2), 3/8" diameters on opposite sides, at the span of; 2" for the 5/23" - 3/32" wrenches and 2-1/2" for the 1/4" - 3/16" wrenches. The wrenches were torqued until either the shank fractured (broke), spun loose in the handle or handle deformation caused loss of contact with the torque fixture. The indicated maximum peak torque and mode of break were documented for the wrenches.

TEST EQUIPMENT:

Lebow 2000.0 in-lb torque transducer, MTI# MM 120-002, calibrated traceable to the NIST on 2-3-98 due 2-3-00.

TEST DATA:

Torque to Break Wrench, in-lb. Mode of Failure (see below)

1/4" Wrench size

Trial # Bondhus Eklind Allen
1 857 832 751
2 840 759 747
3 880 777 750
4 881 681 770
5 888 855 763
Average 869 781 756

7/32" Wrench size

1 624 521 506
2 598 518 506
3 631 520 511
4 630 504 511
5 641 503 503
Average 625 513 507

3/16" Wrench size

1 400 333 330
2 390 324 329
3 381 343 314
4 383 341 311
5 380 339 311
Average 387 336 319

5/32" Wrench size

1 221 190 193
2 224 188 184
3 234 189 189
4 223 183 186
5 221 188 184
Average 225 188 187

Mode of Failure:
Bondhus and Allen - the shank of the wrenches twisted into a spiral and then fractured.

Eklind - the wire handles deformed resulting in loss of contact with the torque fixture. Twisting and bending of the shanks also occurred during torquing, but no shank fractures occurred.

TEST DATA: (cont')
Torque to Break Wrench, in-lb.Mode of Failure (see below)

9/64" Wrench size

Trial # Bondhus Eklind Allen
1 160 137 131
152 136 130
161 137 131
4 159 135 131
5 158 131 130
Average 158 135 131

1/8" Wrench size

1 105 89 97
2 114 85 101
3 118 82 94
4 114 82 99
5 119 82 101
Average 115 84 98

7/64" Wrench size

1 78 62 63
2 77 55 60
3 77 60 63
4 76 60 64
5 79 60 62
Average 77 59 63

3/32" Wrench size

1 46 38 40
2 45 37 37
3 46 37 37
4 45 36 38
5 46 37 37
Average 46 37 38

Mode of Failure:
Bondhus and Allen - the shank of the wrenches twisted into a spiral and then fractured.

Eklind - the wire handles deformed resulting in loss of contact with the torque fixture. Twisting and bending of the shanks also occurred during torquing, but no shank fractures occurred.

REMARKS:
The wrenches will be retained for thirty days then discarded unless otherwise notified.

Hex Key Comparisons

The results of an independent study showing the breaking point of Bondhus, Eklind, and Allen L-Wrenches.

Learn More

Torque Comparison

Project number 3018 99-05234
Date: January 29, 1999
MAXIM TECHNOLOGIES, INC.
662 Cromwell Avenue
St. Paul, Minnesota 55114

Project: Torque Testing
Client Purchase Order Number: Verbal
Prepared By: Scott W. Britzius Project Engineer/Experimental Mechanics Mechanical Engineering Department
Reviewed By: Richard S. Alberg Manager Mechanical Engineering Department
Phone: (651) 659-7307
"An Affirmative Action, Equal Opportunity Employer"

The test results contained in this report pertain only to the samples submitted for testing and not necessarily to all similar products.



Comparison Performance Testing

INTRODUCTION:
This report presents the results of comparison performance tests conducted on eight specified sizes of hex wrenches produced by three manufacturers. The testing was requested on January 4, 1999 by Mr. Mike Blackston of the Bondhus Corporation.
The scope of work was limited to purchasing the hex wrenches directly from an industrial distributor, determining the torque to fracture (twist off) the wrenches and providing a report of the results. The testing was completed on January 27, 1998.

SUMMARY OF RESULTS:
Average Torque to Fracture (break) Off Wrench, in-lb

MANUFACTURER

Wrench Size Bondhus Eklind Allen
1/16 inch 15 11 11
5/32 inch 225 190 160
1/4 inch 920 765 725
5/16 inch 1760 1525 1390
1.5 mm 12 10 9
4 mm 230 165 160
6 mm 760 650 610
8 mm 1710 1540  1440



SAMPLE IDENTIFICATION

Ball End style hex wrenches purchased from MSC Industrial Supply Co. under Maxim Technologies purchase order number 51345 on 1-14-99 and shipped to our facility by UPS. Five (5) wrenches each in the size and leg lengths listed below were purchased.

SAMPLE IDENTIFICATION:

Manufacture: Size Length Size Length
Bondhus 1/16 1/2" x 3" 1.5 mm 1/2" x 3"
  5/32 3/4" x 4" 4 mm 1" x 4"
  1/4 1-1/4"x5" 6 mm 1-1/4"x5-1/2"
  5/16 1-1/2" x 6" 8 mm 1-1/2" x 6"
Eklind Tool 1/16 1/2" x 3" 1.5 mm 1/2" x 3"
  5/32 3/4" x 4" 4 mm 1" x 4"
  1/4 1-1/4"x 5" 6 mm 1-1/4"x5-1/2"
  5/16 1-1/2"x6" 8 mm 1-1/2"x6"
Allen 1/16  1/2" x 3" 1.5 mm 1/2" x 3"
  5/32 3/4" x 4" 4 mm 1" x 4"
  1/4 1-1/4" x 5" 6 mm 1-1/4"x5-1/2"
  5/16 1-1/2" x 6" 8 mm 1-1/2" x 6"



TEST METHODS:

The size, leg lengths and end styles of the wrenches purchased were documented. The torque testing was conducted by placing the shorter leg of the wrench 3/16" into the matching size of a hex driver socket. The hex socket was attached to a 2,000.0 in-lb torque transducer. To obtain the required leverage to stress the wrench, an extension arm (pipe) was placed over the longer leg to terminating 1 inch from 90° bend. The wrenches were then torqued clockwise until the wrench fractured (broke) off. The indicated maximum peak torque and location of break were documented for each wrench.

TEST EQUIPMENT:

Lebow 2K in-lb torque transducer, MTI# MM 120-002, calibrated traceable to the NIST on 2-3-98 due 2-3-00.

TEST DATA:

Torque to fracture (break) off wrench, in-lb.

1/16" Wrench size

Trial # Bondhus Eklind Allen
1 16 11 10
2 15 11 10
3 16 12 12
4 15 10 11
5 15 11 11
Average 15 11 11

5/32" Wrench size

1 239 195 175
2 200 189 157
3 233 192 150
4 243 192 138
5 220 190 170
Average 225 190 160

1/4"Wrench size

1 922 789 724
2 910 764 720
3 950 754 731
4 902 754 724
5 927 761 719
Average 920 765 725

5/16"Wrench size

1 1,789 1,521 1,371
2 1,764 1,513 1,430
3 1,778 1,535 1,403
4 1,735 1,546 1,371
5 1,740 1,501 1,382
Average 1,760 1,525 1,390

In all cases the wrenches broke at the start of the socket driver with permanent twisting of the shorted leg occurred prior to breaking.

TEST DATA:(cont')

Torque to fracture (break) off wrench, in-lb.

1.5 mm Wrench size

Trial # Bondhus Eklind Allen
1 11 10 9
2 12 9 10
3 12 11 10
4 12 11 9
5 13 10 9
Average 12 10 9

4 mm Wrench size

1 249 163 180
2 215 147 132
3 231 182 164
4 235 162 175
5 235 177 148
Average 230 165 160

6 mm Wrench size

1 786 653 621
2 750 642 584
3 742 656 613
4 758 640 607
5 752 650 617
Average 760 650 610

8 mm Wrench size

1 1,733 1,535 1,431
2 1,704 1,526 1,426
3 1,707 1,557 1,480
4 1,693 1,543 1,424
5 1,712 1,550 1,428
Average 1,710 1,540 1,440

In all cases the wrenches broke at the start of the socket driver with permanent twisting of the shorted leg occurred prior to breaking.

REMARKS:

The wrenches will be retained for thirty days than discarded.



2mm Strength Demo

A Bondhus 2mm L-Wrench and a competitor's 2mm L-Wrench

Learn More

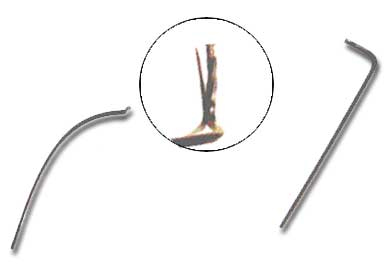

2mm Strength Demonstration

The strength of a Bondhus® hex key was tested against that of a competitor. The tools were inserted into the solid receptacle and then turned in opposite directions until one of the tools broke.







As test results below show, while the Bondhus® tool suffered no damage, the competitor's tool was twisted, deformed, and broken.

Salt Spray Comparisons

Bondhus, Eklind, and Allen L-Wrenches are exposed to salt water fog and checked for rust after 20 hours exposure.

Learn More

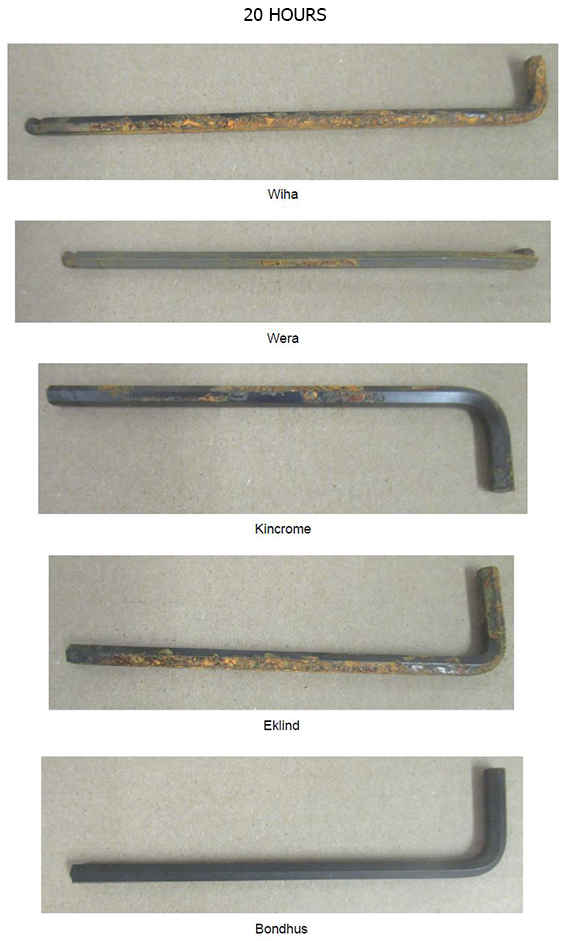

Salt Spray Testing

Date: January 4, 1999
MAXIM TECHNOLOGIES, INC.
662 Cromwell Avenue
St. Paul, Minnesota 55114

Project: Salt Spray Testing
Client Purchase Order Number: Verbal
Prepared By: Scott W. Britzius Project Engineer/Experimental Mechanics Mechanical Engineering Department
Reviewed By: Richard S. Alberg Manager Mechanical Engineering Department
Phone: (651) 659-7307
"An Affirmative Action, Equal Opportunity Employer"

The test results contained in this report pertain only to the samples submitted for testing and not necessarily to all similar products.



Comparison Performance Torque Testing

INTRODUCTION:
This report presents the results of comparison Salt Spray performance tests conducted on 5/16" hex wrenches produced by three manufacturers. The testing was requested on January 4, 1999 by Mr Mike Blackston of the Bondhus Corporation.

The scope of work was limited to purchasing the hex wrenches directly from an industrial distributor, conducting the salt fog exposure testing and providing a report of the results. Testing was completed on February 4, 1999.

SUMMARY OF RESULTS:

Manufacture Sample % Rust after
  20 hours exposure
Type & Location of Rust
Bondhus A 3 to 5% 3 to 4 pin head size red rust spots.
  B 3 to 5% 3 to 4 pin head size red rust spots.
Eklind A 60 to 70% Red rust and pitting of surface.
  B 60 to 70% Red rust and pitting of surface.
Allen A 70 to 80% Red rust and pitting of surface.
  B 70 to 80% Red rust and pitting of surface.

SAMPLE IDENTIFICATION:

Two (2) wrenches each were purchased from MSC Industrial Supply Co. under Maxim Technologies purchase order number 51345 on 1-14-99 and shipped to our facility by UPS.

Bondhus – 5/16" Hex Wrench, 1-1/2 x 6" with ball end.
Eklind Tool – 5/16" Hex Wrench, 1-1/2 x 6" with ball end.
Allen – 5/16" Hex Wrench, 1-1/2 x 6" with ball end.


TEST METHODS:

The test was conducted in accordance with ASTM:B117-94. The samples were tested as received with no cleaning prior to exposure. The wrenches were supported at a angle of 15° from vertical for 20 hours under the following conditions:

Test Media: 5% Salt solution
Cabinet Temperature: 95° F
Fog Collection (ml/hr): 1.2 to 1.3
Specific Gravity: 1.037
pH Range: 7.0
Humidifier Temperature: 110° F
Tower Pressure: 12 psig

INSTRUMENTATION:
Salt Spray Chamber #2, MTI# MM 190-007, calibration traceable to the NIST on
6-4-98 due 6-4-99.

REMARKS:
The wrenches will be retained for thirty days than discarded.
