77037.72_copyStubby Double Ball End L-Wrenches - BriteGuard™ Finish

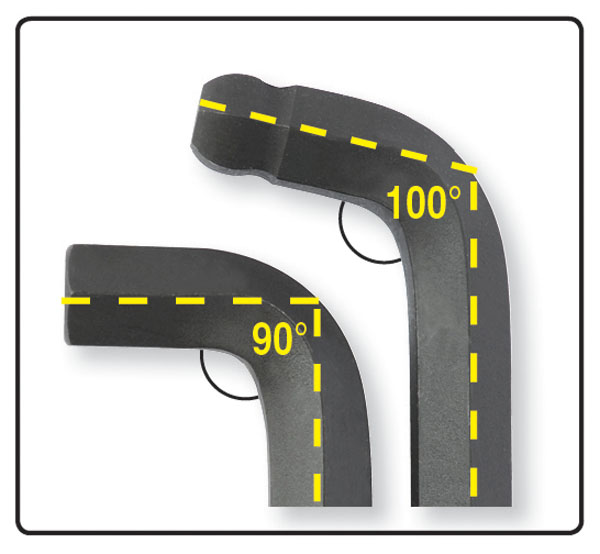

Exclusive MaxTorque™ ball end:

  • on short arm allows access to screw heads located in tight spaces straight-in or at an angle
  • delivers 50% more torque than conventional ball ends
  • inserts into screw and works at a 125 degree angle
  • Standard Bondhus ball end on long arm inserts into screw and works at a 15 degree angle.
  • Extra long length provides for greater torque



Cases are color-coded for easy recognition

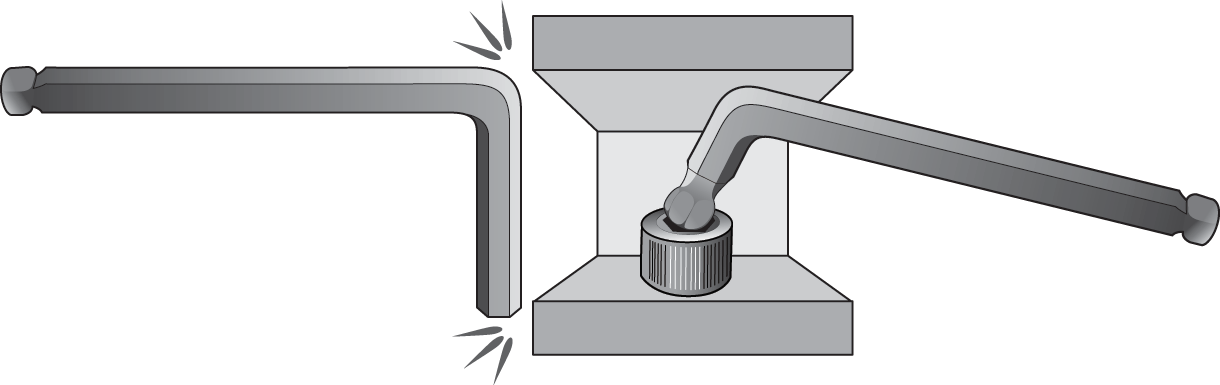

Inch Yellow Icon Mectric Red protanium_clear BriteguardLogo pg-ball-ClearBall End Tips | SDB-Line-art Stubby fits where others cannot |

BriteGuard™ Stubby Double Ball End L-Wrench Sets

PART#    MODEL# PCS LENGTH CONTENTS QTY

SETS

77037 SDBLX13BXL 13 Extra Long .050,1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4", 5/16, 3/8" 1 Mectric Red
77099 SDBLX9MBXL 9 Extra Long 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm 1 Inch Yellow Icon

BriteGuard™ Stubby Double Ball End L-Wrench Singles

diam 770xx

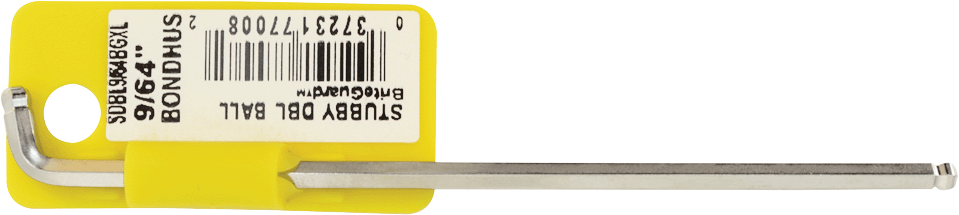

Tagged/Barcoded

SIZE INCH MM INCH MM PART# QTY SINGLES
 EXTRA LONG Inch

 .050  3.1  79  0.25  4  77002  5 Inch Yellow Icon
 1/16  3.3  84  0.24  4 77003  5 Inch Yellow Icon
 5/64  3.6  91  0.32  7 77004  5 Inch Yellow Icon
 3/32  3.9  98  0.36  7 77005  5 Inch Yellow Icon
 7/64  4.1  104  0.36  8 77006  5 Inch Yellow Icon
 1/8  4.4  113  0.37  8 77007  5 Inch Yellow Icon
 9/64  4.8  121  0.37  8 77008  5 Inch Yellow Icon
 5/32  5.1  130  0.38  9 77009  5 Inch Yellow Icon
 3/16  5.3  134  0.44  10 77010  5 Inch Yellow Icon
 7/32  5.7  144  0.48  12 77011  2 Inch Yellow Icon
 1/4  6.5  164  0.49  12 77012  2 Inch Yellow Icon
 5/16  7.1  180  0.61  14 77013  2 Inch Yellow Icon
 3/8  7.8  199  0.84  18 77014  2 Inch Yellow Icon
 EXTRA LONG Metric
 1.5  3.5  89  0.24  6 77050  5 Mectric Red
 2.0  3.9  100  0.32  8 77052  5 Mectric Red
 2.5  4.4  111  0.35  9 77054  5 Mectric Red
 3.0  4.9  125  0.37  9 77056  5 Mectric Red
 4.0  5.6  143  0.38  10 77060  5 Mectric Red
 5.0  6.4  161  0.43  11 77064  5 Mectric Red
 6  6.8  173  0.50  13 77068  5 Mectric Red
 8  7.7  194  0.60  15 77072  2 Mectric Red
 10  8.4  214  0.82  21 77076  2 Mectric Red
